R9R R9AT R9A High Pressure Four Wire Spiral Hydraulic Hose

Tube: oil synthetic rubber
Reinforcement: four spirals wire reinforcement
​​​​​​​Cover: oil and weather resistant synthetic rubber cover.
Quantity:
  • 1/4" 5/16" 3/8" 1/2" 3/4" 1" 1-1/2" 2" 2-1/2" 3" 3.5" 4" 4.5" 5" 6" 8"
  • OEM
  • 4009210000
  • R9AT, R9A, R9R
  • Rubber Oil Hose
  • Oil Hose
  • Nitrile Rubber
  • Black
  • OEM manufacture
  • 4009210000
  • 4:1
R9R R9AT R9A High Pressure Four Wire Spiral Hydraulic Hose

SAE-R9R

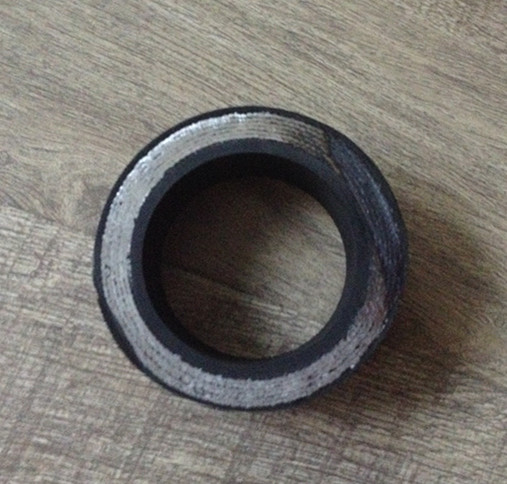

Construction: This hose consists of an inner tube of oil synthetic rubber, four spirals wire reinforcement, and an oil and weather resistant synthetic rubber cover.
Application: Hose range suitable to carry hydraulic fluids such as glycol, mineral oilsfuelslubricationemulsionhydrocarbons etc.
Working temperature: From-40 up to +100

Datasheet of R9R Hydraulic Hose
R9R
DN
  ID WIRE OD OD WP TP
BP
Mini. B.R Weight
Kg/m
mm inch min max min max min max max

min
6.4 1/4 6.2 7.0 14.2 15.2 17.2 18.4 50.0 100.0 200.0 120 0.64
9.5 3/8 9.3 10.1 16.9 18.0 20.6 22.2 31.5 63.0 126.0 130 0.75
12.7 1/2 12.3 13.5 20.3 21.2 23.8 25.4 28.0 56.0 112.0 180 0.89
19.0 3/4 18.6 19.8 27.4 28.8 31.2 32.8 21.0 42.0 84.0 280 1.50
25.4 1 25.0 26.4 34.8 35.8 38.5 40.9 21.0 42.0 84.0 355 2.00
31.8 1.1/4 31.4 33.4 42.4 44.0 46.3 48.7 17.5 35.0 70.0 460 2.80
38.1 1.1/2 37.7 39.7 48.7 50.3 52.3 54.7 14.0 28.0 56.0 560 3.40
50.8 2 50.4 52.4 62.2 63.8 65.8 68.2 14.0 28.0 56.0 710 4.25
