R2/ 2sn Two Steel Wire Braid Hydraulic Rubber Hose

ID, OD meet the standard; WP, BP always exceed the standard.
Quantity:
Inquire Add to Basket

  • 1/4" 5/16" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 3" 4" 5" 6" 7" 8"

  • OEM or HAPPY

  • 4009210000

  • DIN EN 853 R2AT/ 2SN

  • Rubber Oil Hose

  • 10m 20m 30m 50m 100m

  • Two Steel Wire Braid

  • -40c ~ +100c

  • Nitrile Rubber

  • Black

  • 4:1

  • 1 Year

R2/2SN Two Steel Wire Braid Hydraulic Rubber Hose

Tube: Oil resistant synthetic rubber
Reinforceent: Two high tensile steel wire layers
Cover Compound: Abrasion and weather resistant synthetic rubber
Temperature range: -40 to +100C

Application: High pressure hydraulic oil lines used in construction, machine tool and agricultural applications using petroleum or water based hydraulic fluids.

The datasheet of R2
R2
DN		 Hose I.D Wire O.D Hose O.D WP BP Min.B.R. Weight
inch mm mm mm MPa psi MPa psi mm kg/m
5 3/16 4.8 11.1 13.4 41.4 6000 166 23720 89 0.32
6 1/4 6.4 12.7 15.0 40.0 5800 160 22840 102 0.36
8 5/16 7.9 14.3 16.6 36.0 5250 140 20000 114 0.45
10 3/8 9.5 16.7 19.0 33.1 4800 132 18840 127 0.54
13 1/2 12.7 19.8 22.2 27.6 4000 110 15720 178 0.68
16 5/8 15.9 23 25.4 25.0 3630 100 14280 203 0.8
19 3/4 19.0 27 29.3 21.5 3120 85 12280 241 0.94
25 1 25.4 34.9 38.0 16.5 2400 65 9420 305 1.35
32 1 1/4 31.8 44.5 48.3 12.5 1820 50 7140 419 2.15
38 1 1/2 38.1 50.8 54.6 9.0 1310 36 5140 508 2.65
51 2 50.8 63.5 67.3 8.0 1160 32 4560 635 3.42

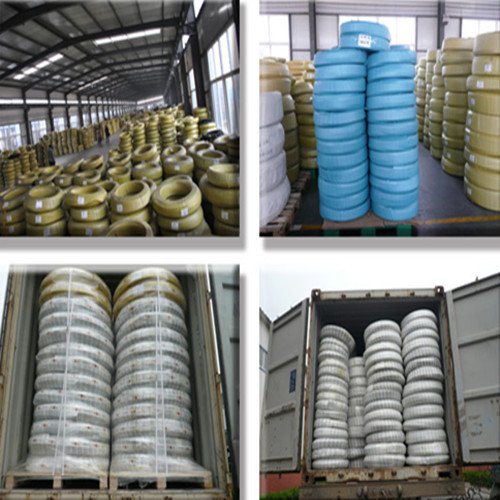

Hoses Images:
R2 Two Steel Wire Braid Hydraulic Rubber Hose
Packaging:

R2 Two Steel Wire Braid Hydraulic Rubber Hose
