High Pressure Marine Floating Hose

Quantity:
  • 10" 12" 14" 16"18" 20" ............40"
  • OEM
  • 4009210000

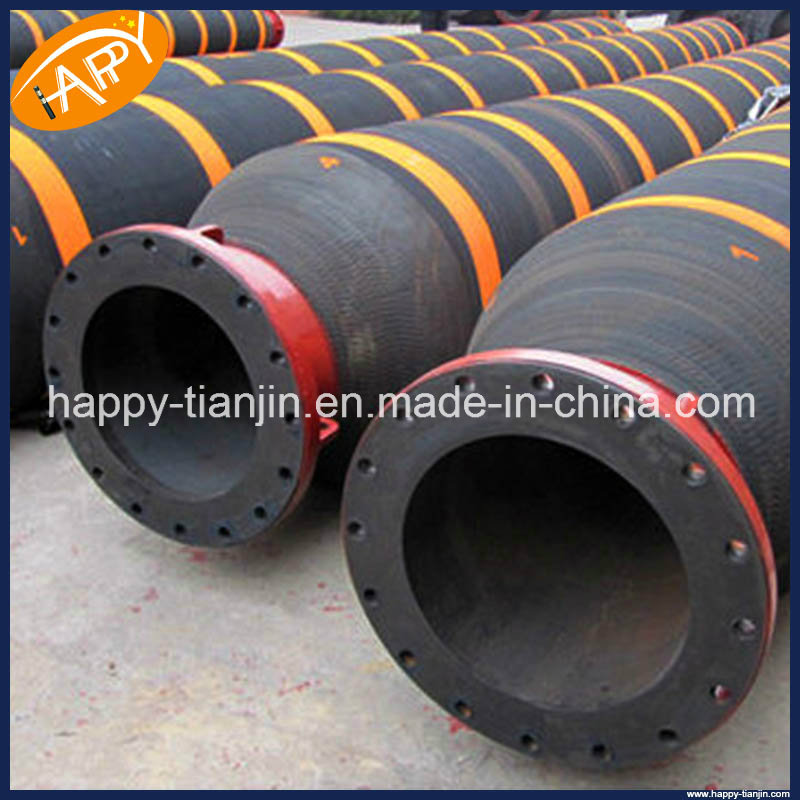

High Pressure Marine Floating Hose

Product Description of Marine Floating Hose
Floating high pressure rubber hose is used with dredgers for silt/gravels conveyance. The suitable conveyance matters are usually mud, clay, fine sand, fine-mid sand and so on.
Inner cover is excellent abrasion-resistance. It can protect the hose from the friction of depositional silt. And the colored indication layers can reflect the degree of the abrasion effectively. This can guarantees the normal use of the floating hose.

With the deep understanding of the floating discharge hoses, the advantages of convenience and stability have been recognized by most of manufacturers. And application of floating discharge hoses at sea becomes more widely.

Characters of Marine Floating Hose

1. Outer cover with excellent abrasion resistance and UV protection.
2. Inner cover with excellent abrasion resistance and high quality.
3. Wearing colored indicator layer.
4. Single foam flotation casing to prevent water absorption.
5. Can bear the high pressure of work.
6. The size of flange is at customers' request.
7. Bending angle: In working condition, the bending angle is from 0° - 45° .
8. Low center of gravity, strong ability of the anti-wave, good stability.
9. Easy installation, Good adhesion, long service life, the hose have four faces (be marked with 1, 2, 3, 4), so we can take turns using it (1 wear out, use 2, 2 wear out, Use 3...), easy assembly.
10. We can produce the hose up to ID1300mm, or as customers' requirement.

Technical parameters of Marine Floating Hose
Inner rubber: SBR, NR, BR
Reinforcement layer: Tire cord with helix wire and floating material layer
Cover rubber layer: SBR and CR blend
Floating layer: PE
Safety factor: 1: 3
Inside Diameter Working Pressure Burst Pressure Vacuum Pressure Adhesive
Strength
Abrasion Value Length
mm inch Mpa bar Mpa bar Kpa bar KN/m Cm3 ft m
254 10 1.5 15 4.5 45 80 0.8 ≥4 ≤0.4 38.7 11.8
304 12 1.5 15 4.5 45 80 0.8 ≥4 ≤0.4 38.7 11.8
350 14 1.5 15 4.5 45 80 0.8 ≥4 ≤0.4 38.7 11.8
400 16 1.5 15 4.5 45 80 0.8 ≥4 ≤0.4 38.7 11.8
450 18 1.5 15 4.5 45 80 0.8 ≥4 ≤0.4 38.7 11.8
500 20 1.5 15 4.5 45 80 0.8 ≥4 ≤0.4 38.7 11.8
550 22 1.5 15 4.5 45 80 0.8 ≥4 ≤0.4 38.7 11.8
600 24 2.0 20 6.0 60 80 0.8 ≥4 ≤0.4 38.7 11.8
800 32 2.0 20 6.0 60 80 0.8 ≥4 ≤0.4 38.7 11.8
850 34 2.0 20 6.0 60 80 0.8 ≥4 ≤0.4 38.7 11.8
900 36 2.0 20 6.0 60 80 0.8 ≥4 ≤0.4 38.7 11.8
1000 40 2.0 20 6.0 60 80 0.8 ≥4 ≤0.4 38.7 11.8
1200 48 2.0 20 6.0 60 80 0.8 ≥4 ≤0.4 38.7 11.8
1300 52 2.0 20 6.0 60 80 0.8 ≥4 ≤0.4 38.7 11.8
                              NOTE: Other Parameters are by your requirement
