You are here: Home » Products » Hydraulic Hose » Concrete Pump Hose / Shotcrete Hose

Product details

Share to:

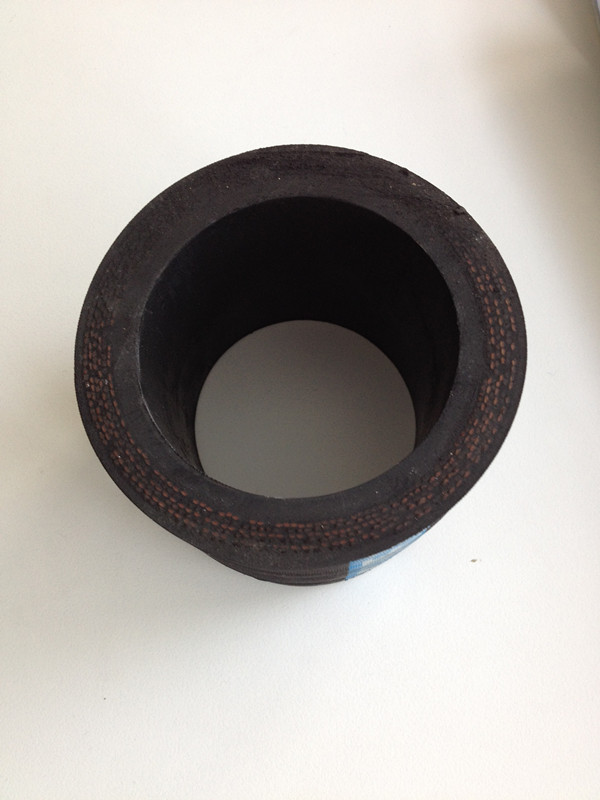

Concrete Pump Hose / Shotcrete Hose

High Pressure W.P.85bar, B.P.200bar.
Highly abrasion resistant
Quantity:
  • 2" 2.5" 3" 4" 5" 6"
  • OEM
  • 4009210000
  • Rubber Hose for Concrete and Grit Blasting
  • SBR
  • SBR/NR
  • Steel Wire or Fabric
  • 85bar
  • 200bar
Fabric or Steel Wire Reinforced Abrasion Resistant Concrete Pump Hose

Concrete hose is usually used concrete pump, concrete jetting manipulator, concrete spraying machine for conveying pump and so on.

The reinforcement has two kinds-- one kind is steel wire and the other kind is fabric.

Our hoses are of good quality. The most ourstanding feature is our hoses have long working life. Now we have big customers in America, Austria and so on.


Specification
ID(mm) OD(mm) Working Pressure (bar) Burst Pressure (bar) Bend Radius (mm) Weight (kg/m)
2" 51mm 68±1.5 85 200 200 2.8
2.5" 64mm 85±1.5 85 200 250 4.0
3" 76mm 102±1.5 85 200 270 6.0
3.5" 89mm 116±1.5 85 200 290 7.5
4" 102mm 130±1.75 85 200 300 9.2
4.5" 115mm 143±2.0 85 200 320 10.5
5" 127mm 158±2.0 85 200 360 11.7
6" 152mm 186±2.0 85 200 570 17.0
