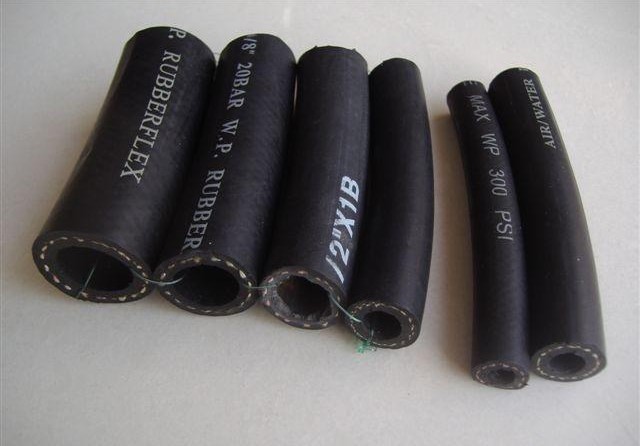

Air Hose

Quantity:
  • 1/4" 5/16" 3/8" 1/2" 3/4" 1" 1-14" 1-1/2" 2" 3"
  • OEM
  • 4009210000
Air Hose

Tube: SBR blended, black, smooth
Reinforcement: Textile braided high tensile synthetic yarn
Cover: EPDM/SBR blended, black, or red yellow, weather and ozone resistant

Applications: Wide range service in general industrial services, mobiles shop pneumatic tools, etc.
Temperature: -35C + 80C
Branding: OEM
Length: 30, 40, 50, 100M
Packing: Trans. P. V. C. Film

Data Sheet of Fiber Braid Air Water Fuel Delivery General Purpose Hose
ID (mm) ID (inch) Wall (mm) WP (bar) BP (bar) Radius (mm) Weight (kg/m)
6 1/4 3, 5 20 60 35 0.17
8 5/16 3, 5 20 60 50 0.25
10 3/8 3, 5 20 60 60 0.29
13 1/2 4, 0 20 60 60 0.37
13 1/2 5, 0 20 60 70 0.42
16 5/8 4, 0 20 60 80 0.45
16 5/8 4, 5 20 60 90 0.48
19 3/4 5, 0 20 60 110 0.58
19 3/4 5, 5 20 60 125 0.60
25 1 5, 0 20 60 130 0.72
25 1 5, 5 16 60 150 0.83
32 1-1/4 6, 0 20 60 230 0.94
38 1/1-2 6, 0 20 60 270 1.08
50 2 7, 0 20 60 400 1.80
