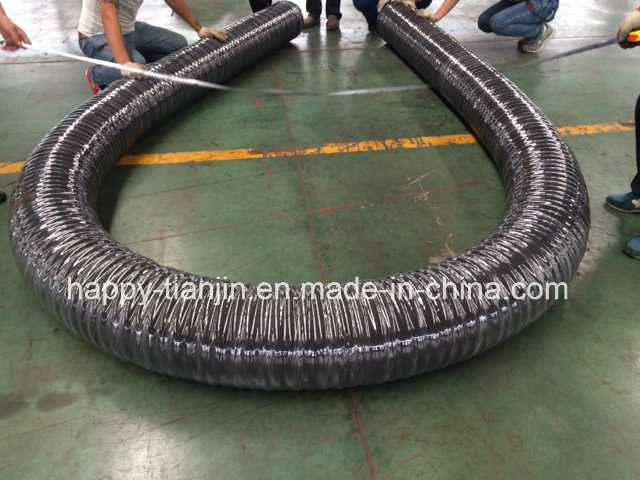

300psi Heavy Duty Oil Suction and Discharge Hose Nitrile tube designed for use with oil, gasoline and other petroleum products. Ideal for pressure, gravity flow or suction service from tank trucks, tank cars or bulk plants. Steel wire helix is spiraled between multiple plies of tire cord to reinforce hose to resist crushing and kinking. Black neoprene
Cover is abrasion, oil and weather resistant.
Construction:
Tube: Nitrile
Reinforcement: Multiple plies polyester tire cord and steel wire helix
Cover: Black neoprene
Length: 40 meters max
Temperature Range: -30° F to +180° F
Datasheet of Oil Suction Hose
ID | OD | WP | BP |
inch | mm | mm | psi | psi |
2" | 51 | 65 | 300 | 900 |
2-1/2" | 63 | 79 | 300 | 900 |
3" | 76 | 94 | 300 | 900 |
4" | 102 | 120 | 300 | 900 |
5" | 127 | 150 | 300 | 900 |
6" | 152 | 176 | 300 | 900 |
8" | 203 | 228 | 300 | 900 |
10" | 254 | 280 | 300 | 900 |
12" | 304 | 333 | 300 | 900 |
